SHOWCASING THE WORKSTATION FAMILY
EXPLORE THEBASIC||and||OPTIONAL||ELEMENTSOF THE WORKSTATIONS
LED lamp
optional addition
Welding fume extraction
optional addition
Perforated stainless steel work surface
optional version
230V & Pneumatic connections
optional additions
Protective screens
optional additions
Sound dampening air exhaust
Toggle switch
magnet fixed switch (fume/dust extraction)
Dust collector
aluminum tray
Machine feet
Stainless steel foot - machine height is adjustable
HD Caster
Robust casters for easy mobility, with/without brake
Forklifting
The workstation can be easily forklifted here.
Switch cabinet
More information
Explore theÆGOWorkstation Models

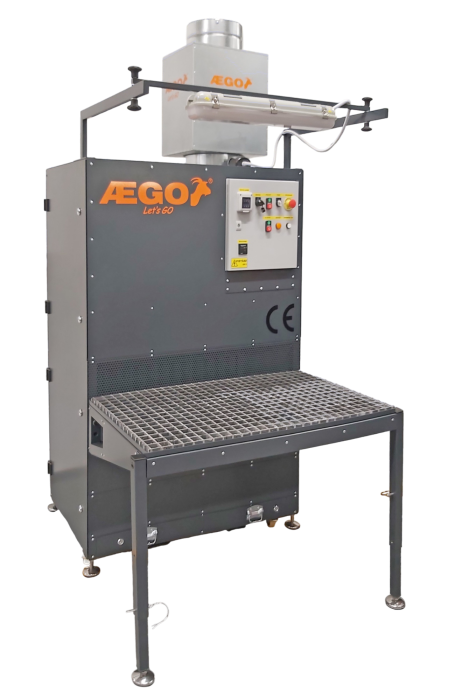

ÆGO1200
The model ÆGO1200 offers a compact design with great versatility. It is ideal for small workshops, featuring a powerful suction system to ensure a clean workspace.
High-Efficiency Filtration
Compact Design
Energy Saving
Easy Maintenance
ÆGO1200 DATASHEET
Model: AEGO-1200 industrial workstation with dust extraction system
Main (standard) technical data:
• Physical dimensions: 1180 mm x 632 mm (without work surface), chimney heigth: 2430 mm,
• Dimensions of the work surface: 1180 to 1680 mm x 620 to 880 mm (other options possible)
• Weight: 300 kg (basic version)
• Adjustable work surface height: 850 mm (standard)
• Material of work surface: plastic grid or plastic slates (other option are available)
• Work surface: interchangable with multiple materials upon demand.
• Load capacity: 70-130 kg.
• Superstructure: welded carbon steel, powder coated, 4 heavy duty casters for mobility.
• Spark-catcher: protect cartridge filters from sparks that may occur during operation.
• Double- layered wire mesh (located underneath the work surface),
• Motor: Explosion-proof, Atex compliant, 380 V, 50 Hz, 2.2 kW radial fan,
• Air flow performance: 4000 m³/h, air exhaust system with silencer,
• Filter cleaning with timer: provides intermittent infusion, adjustable from 0.5 to 45 mins
minutes, with adjustable infusion time from 0.5 to 10 seconds,
• Control cabinet’s components: ON/OFF buttons, operating time indicator, filter saturation
indicator, emergency stop,
• 1 antistatic M-class Atex filter: 500 mm x 800 mm with ground, filter range: 0.2 to 2.0 microns
• Documents: CE Certificate, Manual EN
Main Extra Equipments:
• 2x 230 V electric socket on front side,
• Lightweight (aluminum) dust collector tray,
• 1 CEJN FRL unit, + lubricated eSafe 3 couplers + dry air e-safe 2 couplers,
• LED lamp: 36 W

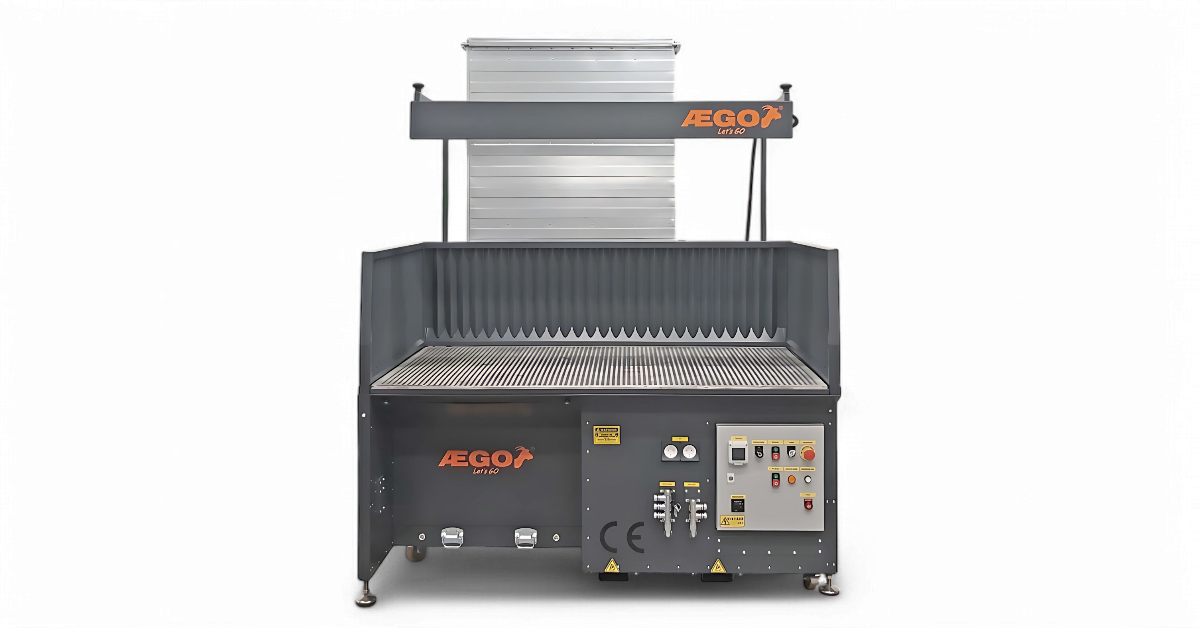

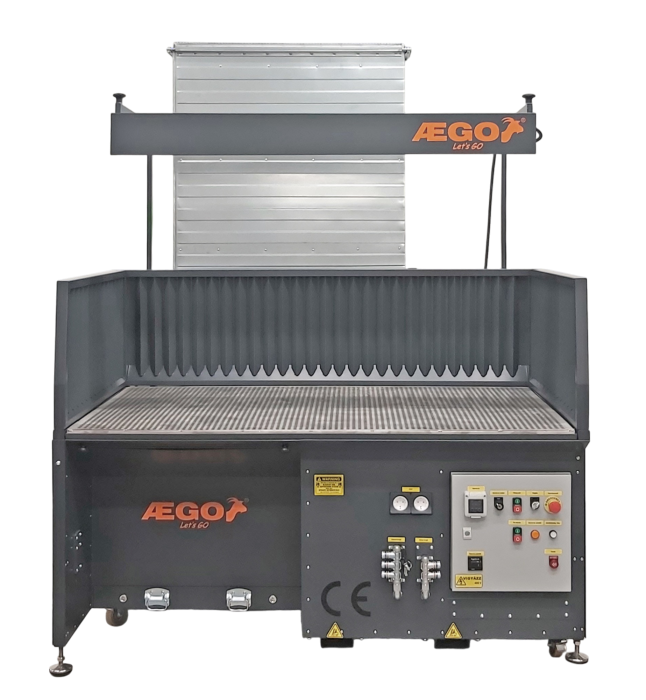

ÆGO1800
Designed for medium-sized operations, the ÆGO1800 combines robust performance with advanced filtration technology.
High-Efficiency Filtration
Robust Performance
User-Friendly Interface
Durable Construction
ÆGO1800 DATASHEET
Model: AEGO-1800 industrial workstation with dust extraction system
Main (standard) technical data:
• Physical dimensions: 1800 mm x 1250 mm (without work surface), chimney heigth: 2300 mm,
• Dimensions of the work surface: 1685 mm x 948 mm
• Adjustable work surface height: 850 mm (standard)
• Weight: 410 kg (basic version)
• Material of work surface: wooden slats impregnated with fire retardant agent (basic but other option are available)
• Work surface: interchangable with multiple materials upon demand.
• Load capacity: 70-130 kg.
• Superstructure: welded carbon steel, powder coated, 4 heavy duty casters for mobility.
• Spark-catcher: protect cartridge filters from sparks that may occur during operation.
• Double- layered wire mesh (located underneath the work surface),
• Motor: Explosion-proof, Atex compliant, 380 V, 50 Hz, 2.2 kW radial fan,
• Air flow performance: 4000 m³/h, air exhaust system with silencer,
• Filter cleaning with timer: provides intermittent infusion, adjustable from 0.5 to 45 mins
minutes, with adjustable infusion time from 0.5 to 10 seconds,
• Control cabinet’s components: ON/OFF buttons, operating time indicator, filter saturation
indicator, emergency stop,
• 1 antistatic M-class Atex filter: 500 mm x 800 mm with ground, filter range: 0.2 to 2.0 microns
• Lightweight (aluminum) dust collector tray,
• Documents: CE Certificate, Manual EN
• The maximum air suction power applies to 75% of the work surface.
Main Extra Equipments:
• 2x 230 V electric socket on front side,
• 1 CEJN FRL unit, + e-Safe MultiLink lubricated air: 3 couplings + dry air: 2 couplings,
• LED lamp: 99 W

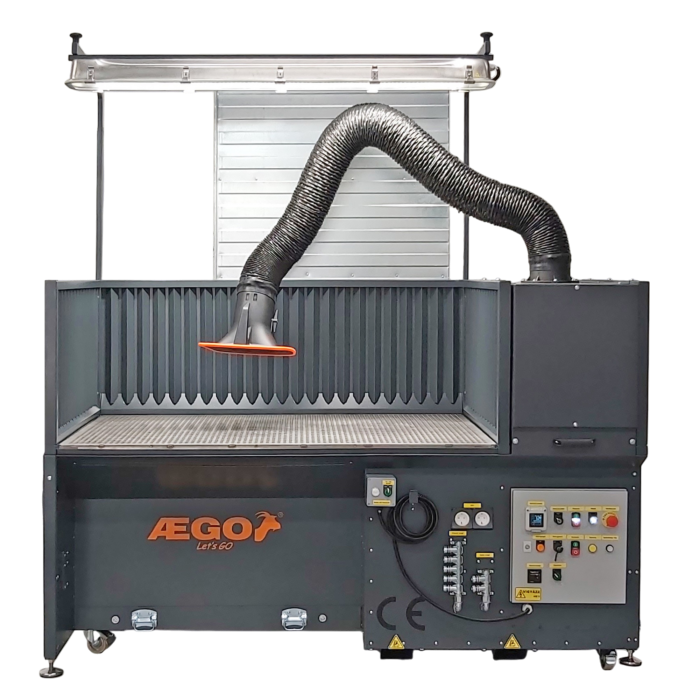

ÆGO2000
The model ÆGO2000 offers a compact design but for bigger workpieces even with welding fume extraction system, featuring a powerful suction system to ensure a clean workspace.
High-Efficiency Filtration
Compact Design
Energy Saving
Easy Maintenance
ÆGO2000 DATASHEET
Model: AEGO-2000 industrial workstation with dust extraction system
Main (standard) technical data:
• Physical dimensions: 2000 mm x 1250 mm (without work surface), chimney heigth: 2300 mm,
• Dimensions of the work surface: 1885 mm x 948 mm
• Adjustable work surface height: 850 mm (standard)
• Weight: 510 kg (basic version)
• Material of work surface: wooden slats impregnated with fire retardant agent (basic but other option are available)
• Work surface: interchangable with multiple materials upon demand.
• Load capacity: 70-130 kg.
• Superstructure: welded carbon steel, powder coated, 4 heavy duty casters for mobility.
• Spark-catcher: protect cartridge filters from sparks that may occur during operation.
• Double- layered wire mesh (located underneath the work surface),
• Motor: Explosion-proof, Atex compliant, 380 V, 50 Hz, 2.2 kW radial fan,
• Air flow performance: 4000 m³/h, air exhaust system with silencer,
• Filter cleaning with timer: provides intermittent infusion, adjustable from 0.5 to 45 mins
minutes, with adjustable infusion time from 0.5 to 10 seconds,
• Control cabinet’s components: ON/OFF buttons, operating time indicator, filter saturation
indicator, emergency stop,
• 1 antistatic M-class, Atex filter: 500 mm x 800 mm with ground, filter range: 0.2 to 2.0 microns
• Lightweight (aluminum) dust collector tray,
• Documents: CE Certificate, Manual EN
• The maximum air suction power applies to 75% of the work surface.
Main Extra Equipments:
• 2x 230 V electric socket on front side,
• 1 CEJN FRL unit, + e-Safe MultiLink lubricated air: 3 couplings + dry air: 2 couplings,
• LED lamp: 76 W

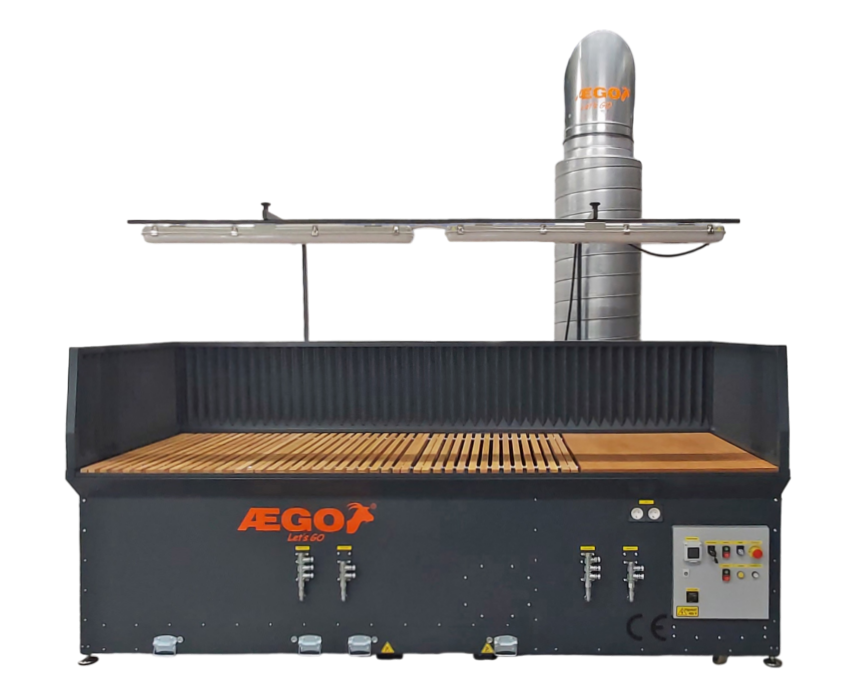

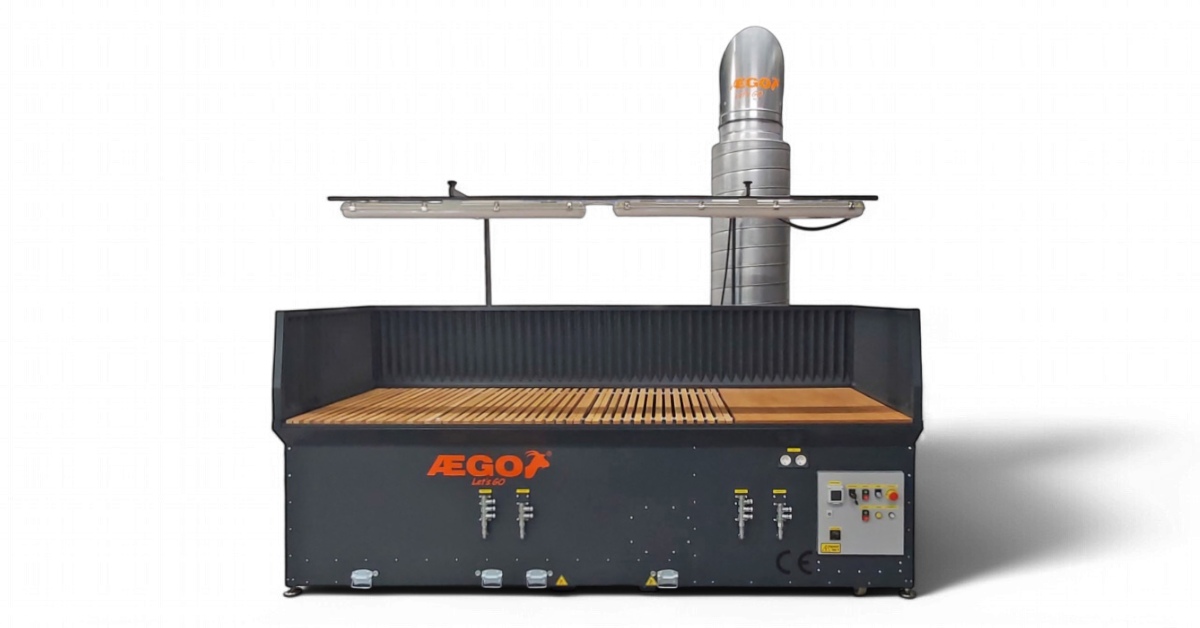

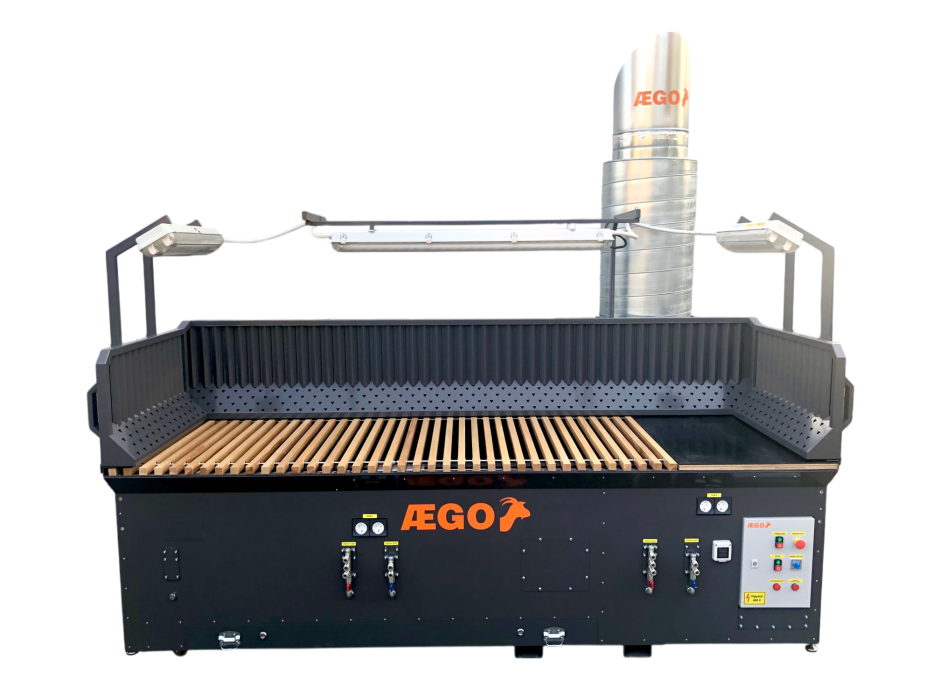

ÆGO3000
Designed for large-scale production and/or big workpieces and/or for multi-operator use. The ÆGO3000 also combines robust performance with advanced filtration technology.
High-Efficiency Filtration
Robust Performance
User-Friendly Interface
Durable Construction
ÆGO3000 DATASHEET
Model: AEGO-3000 industrial workstation with dust extraction system
Main (standard) technical data:
• Physical dimensions: 3000 mm x 1000 mm (without work surface), chimney heigth: 2860 mm,
• Dimensions of the work surface: 2895 mm x 948 mm
• Adjustable work surface height: 850 mm (standard)
• Weight: 710 kg (basic version 650 kg + side and back screens, LED lamp)
• Material of work surface: wooden slats impregnated with fire retardant agent (basic but other option are available)
• Work surface: interchangable with multiple materials upon demand.
• Load capacity: 130 kg.
• Superstructure: welded carbon steel, powder coated, 4 heavy duty casters for mobility.
• Spark-catcher: protect cartridge filters from sparks that may occur during operation.
• Double- layered wire mesh (located underneath the work surface),
• Motor: Explosion-proof, Atex compliant, 380 V, 50 Hz, 4.0 kW radial fan,
• Air flow performance: 6000 m³/h, air exhaust system with silencer,
• Filter cleaning with timer: provides intermittent infusion, adjustable from 0.5 to 45 mins
minutes, with adjustable infusion time from 0.5 to 10 seconds,
• Control cabinet’s components: ON/OFF buttons, operating time indicator, filter saturation
indicator, emergency stop,
• 2 antistatic M-class, Atex filters: 325 mm x 1600 mm with ground, filter range: 0.2 to 2.0 microns
• Lightweight (aluminum) dust collector tray,
• Documents: CE Certificate, Manual EN
• The maximum air suction power applies to 75% of the work surface.
Main Extra Equipments:
• 2x 230 V electric socket on front side,
• 1 CEJN FRL unit, + e-Safe MultiLink lubricated air: 2×3 couplings + dry air: 2×2 couplings,
• LED lamps: 2×59 W
